Model:LT-009
Voltage:220/110V
Power:2.6KW
Frequency:20kHZ
Workstation:ten station
Filling range:6-60ml/10-120ml/25-250ml/50-500ml
Filling accuracy:±1%
Sealing speed:25-30pcs/min
Tube height:50-250mm
Tube diameter:16-50mm(can custom)
Applicable tube material:Plastic composite tube, aluminum-plastic tube
Air pressure:0.5-0.6MPa
Air consumption:0.38m³/min
Size:1590*1400*1650mm
Weight:450kg

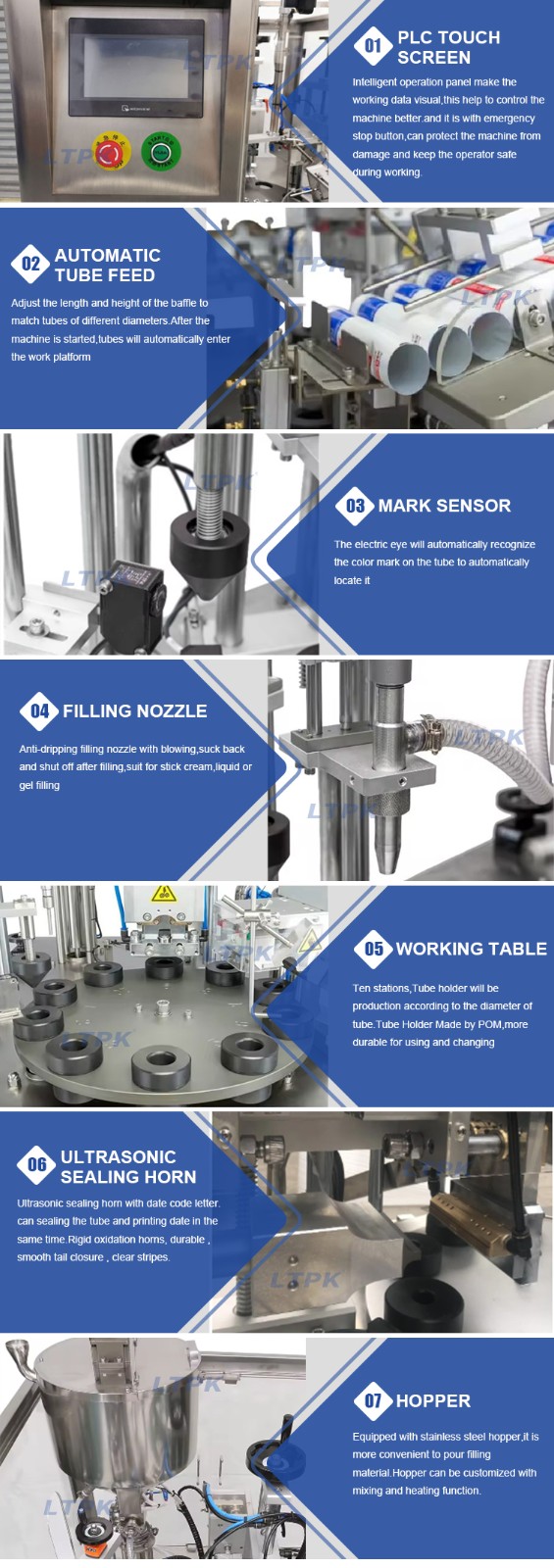

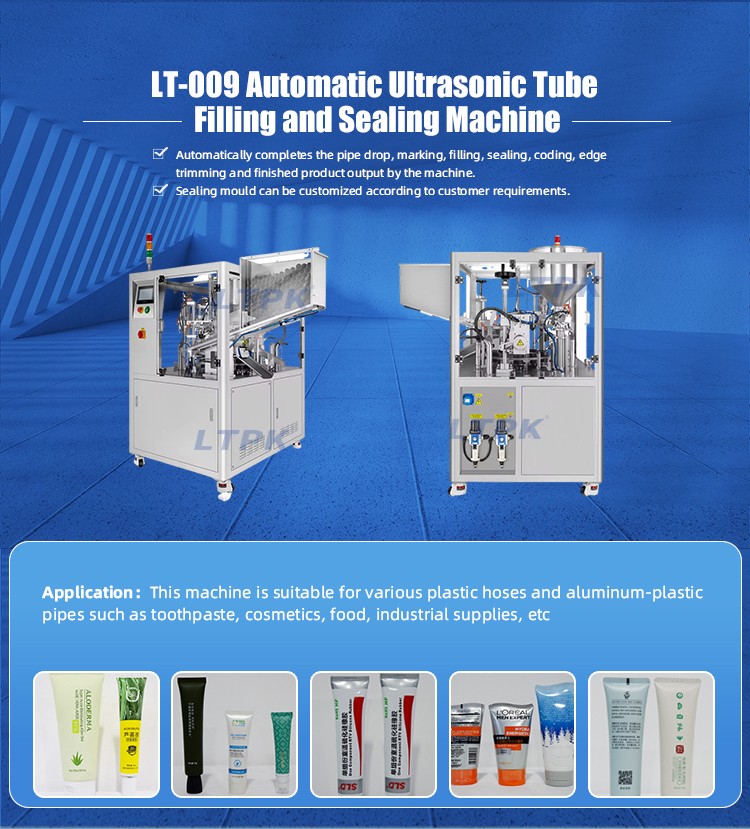

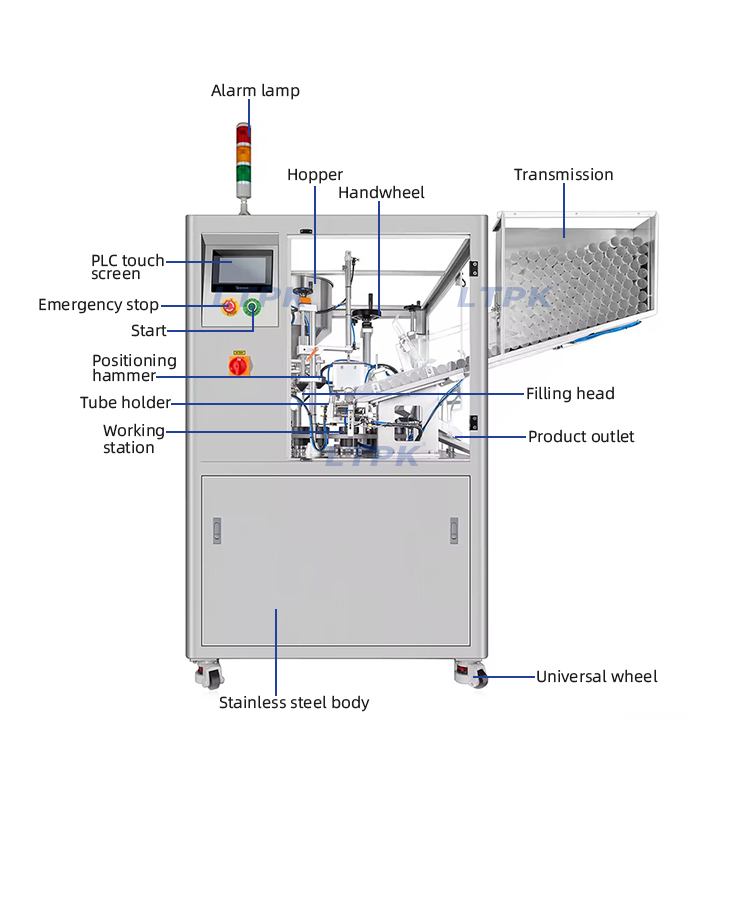

This machine adopts ultrasonic to calculate the sealing, and the sealing effect is stable and long-lasting; the lines at the sealing are clear and not deformed;The machine is a high-quality and high-performance filling and sealing packaging machine for liquid and paste containers. Tube filling and sealing machine adopts automatic tube feeding, automatic color code detection, automatic filling, automatic tube tail sealing and automatic tail cutting.
Model | LT-009 |
Voltage | 220/110V |
Power | 2.6KW |
Frequency | 20kHZ |
Workstation | ten station |
Filling range | 6-60ml/10-120ml/25-250ml/50-500ml |
Filling accuracy | ±1% |
Sealing speed | 25-30pcs/min |
Tube height | 50-250mm |
Tube diameter | 16-50mm(can custom) |
Applicable tube material | Plastic composite tube, aluminum-plastic tube |
Air pressure | 0.5-0.6MPa |
Air consumption | 0.38m³/min |
Size | 1590*1400*1650mm |
Weight | 450kg |
This machine is suitable for various plastic hoses and aluminum-plastic pipes such as toothpaste, cosmetics, food, industrial supplies, etc
