Model:LT-007
Suitable tube diameter:10-50mm
Sealing height:50-220mm
Air Pressure:0.5Mpa (Our this machine need to connect with Air compressor)
The machine adopts ultrasonic technology to seal, and the sealing effect is stable and long-lasting; the lines at the sealing are clear and not deformed.

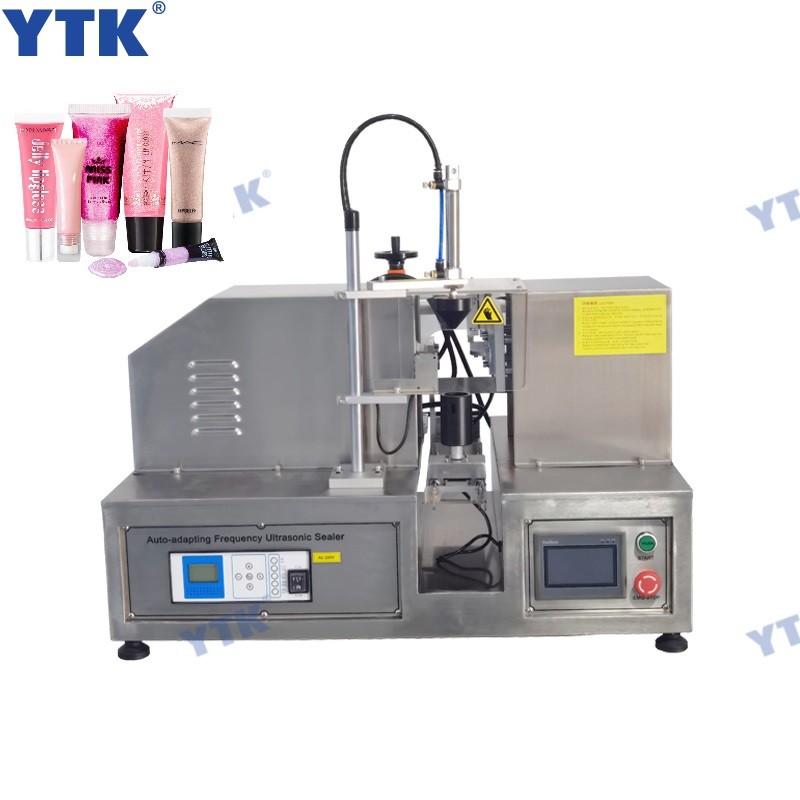

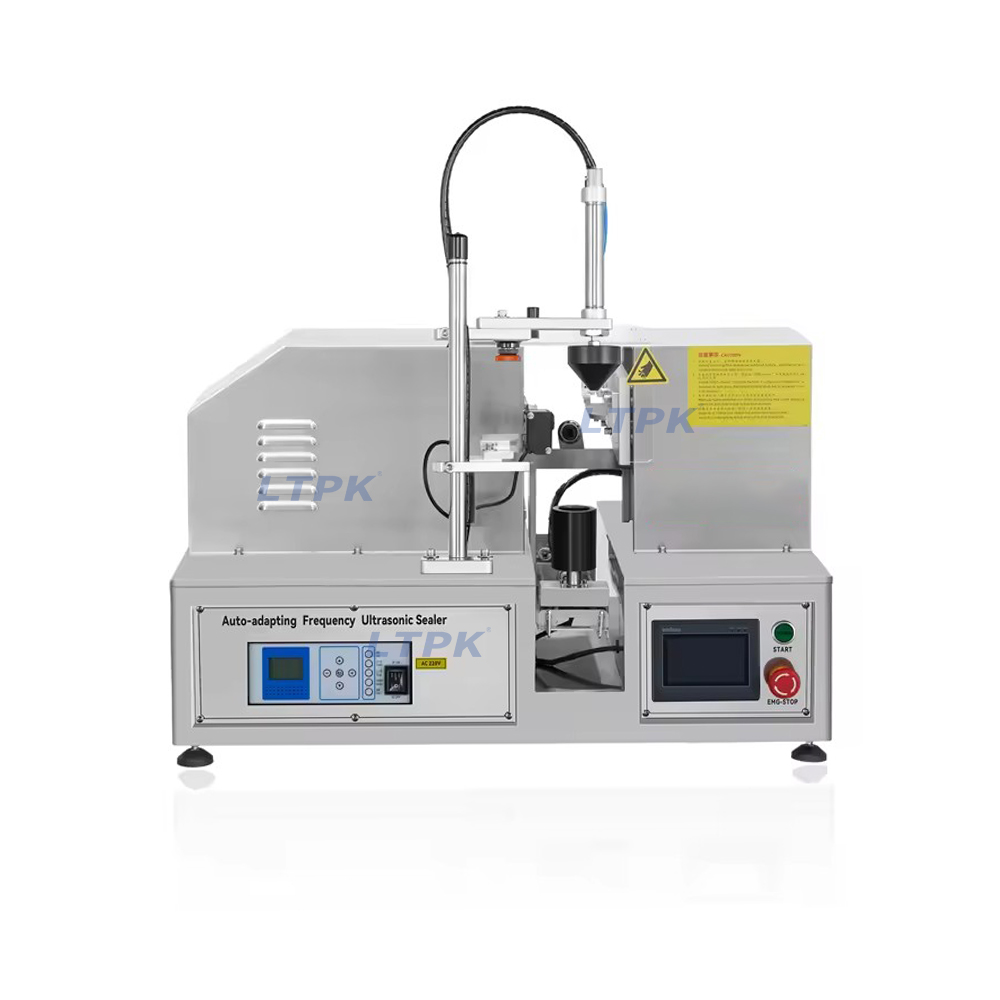

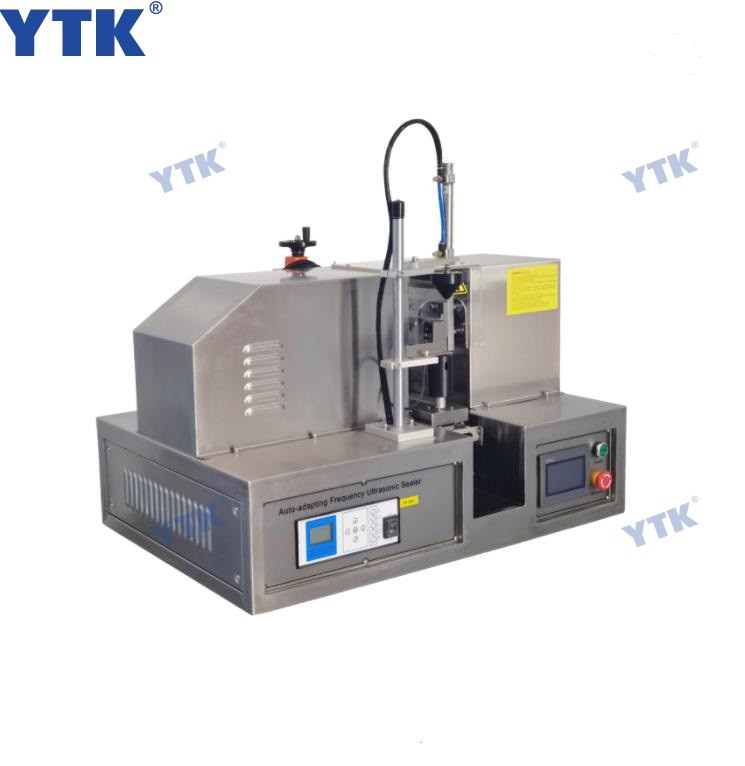

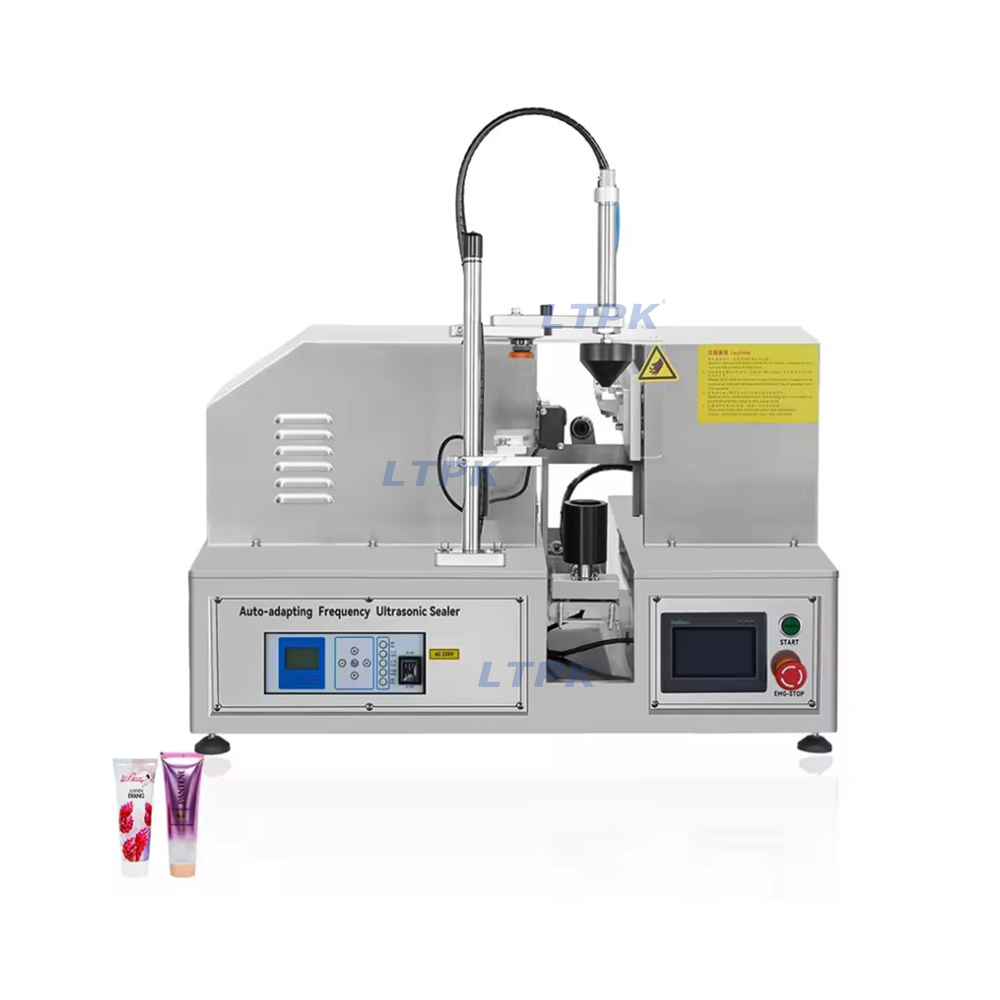

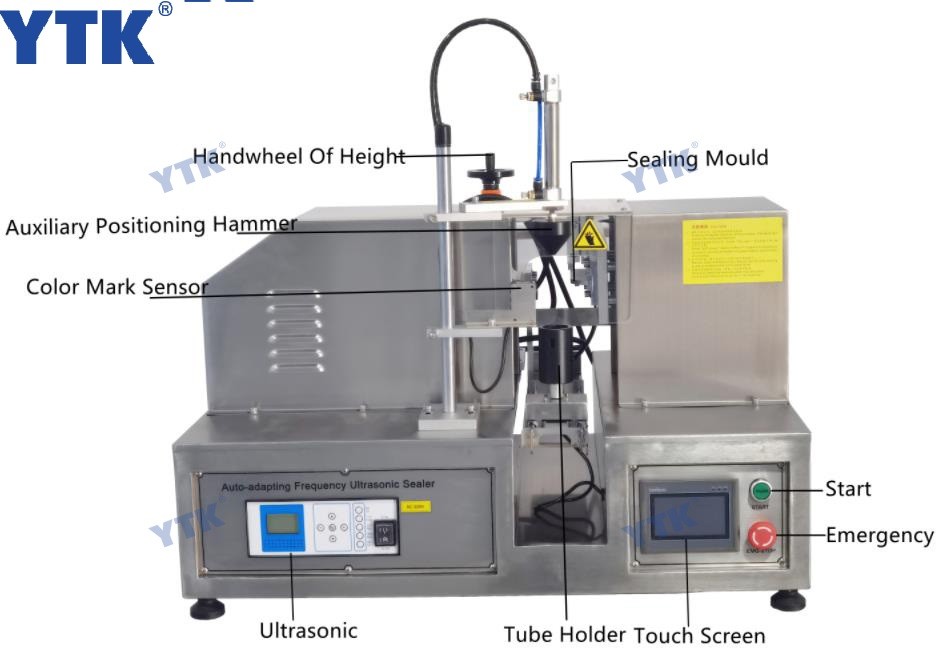

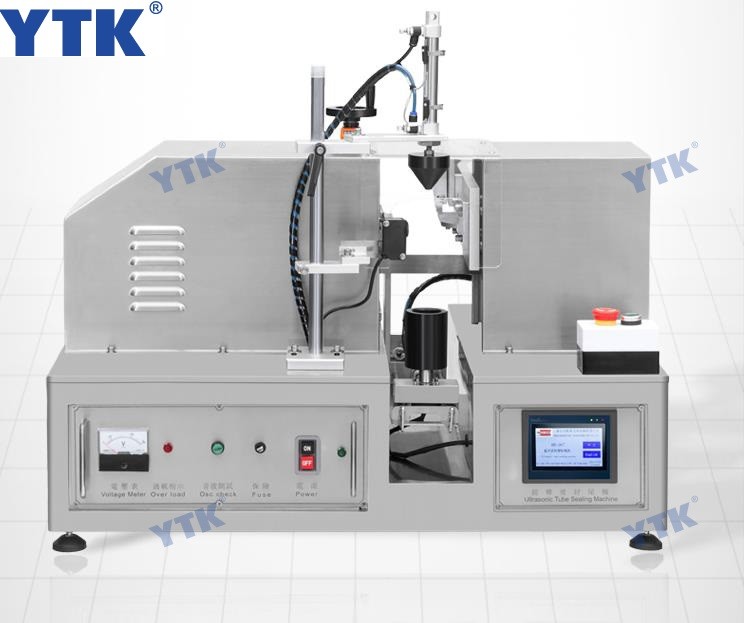

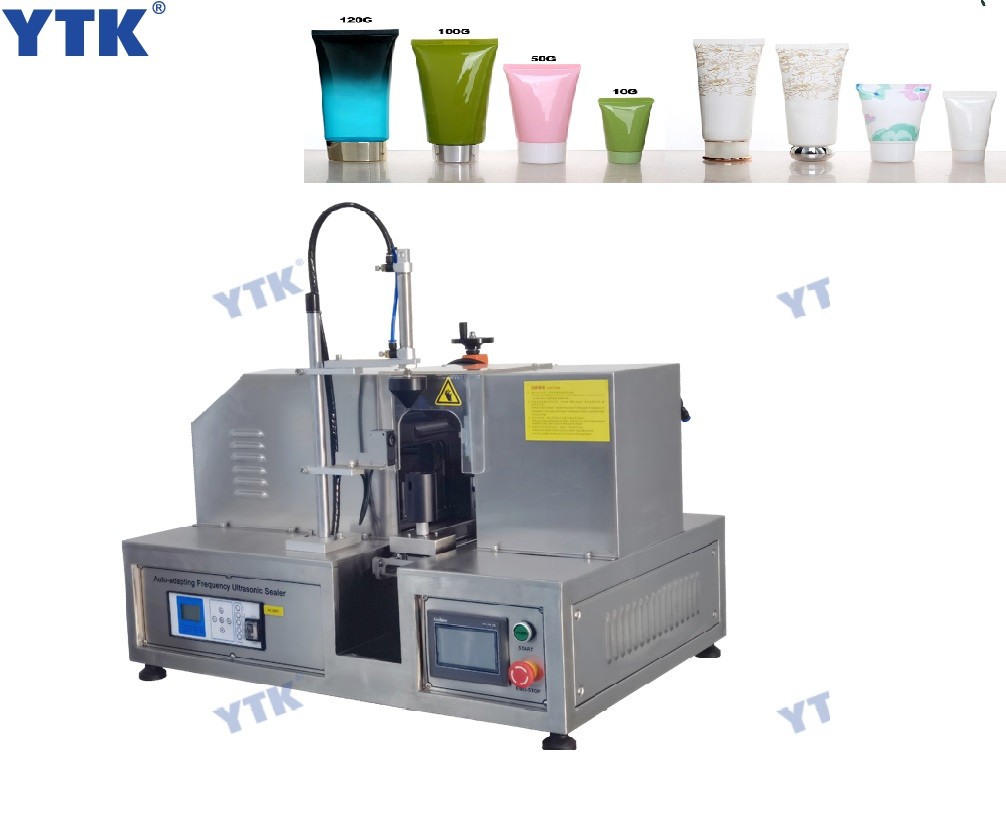

Semi Automatic Ultrasonic Tube sealing machine
Advantages

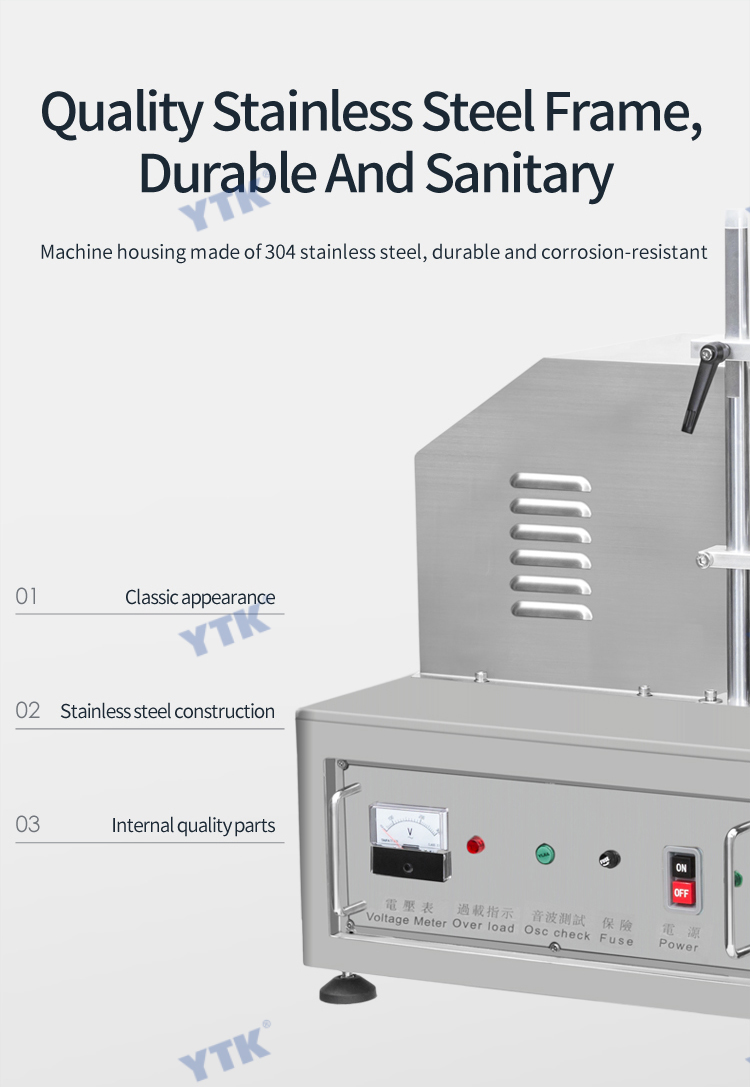

1. The machine uses a full stainless steel body.

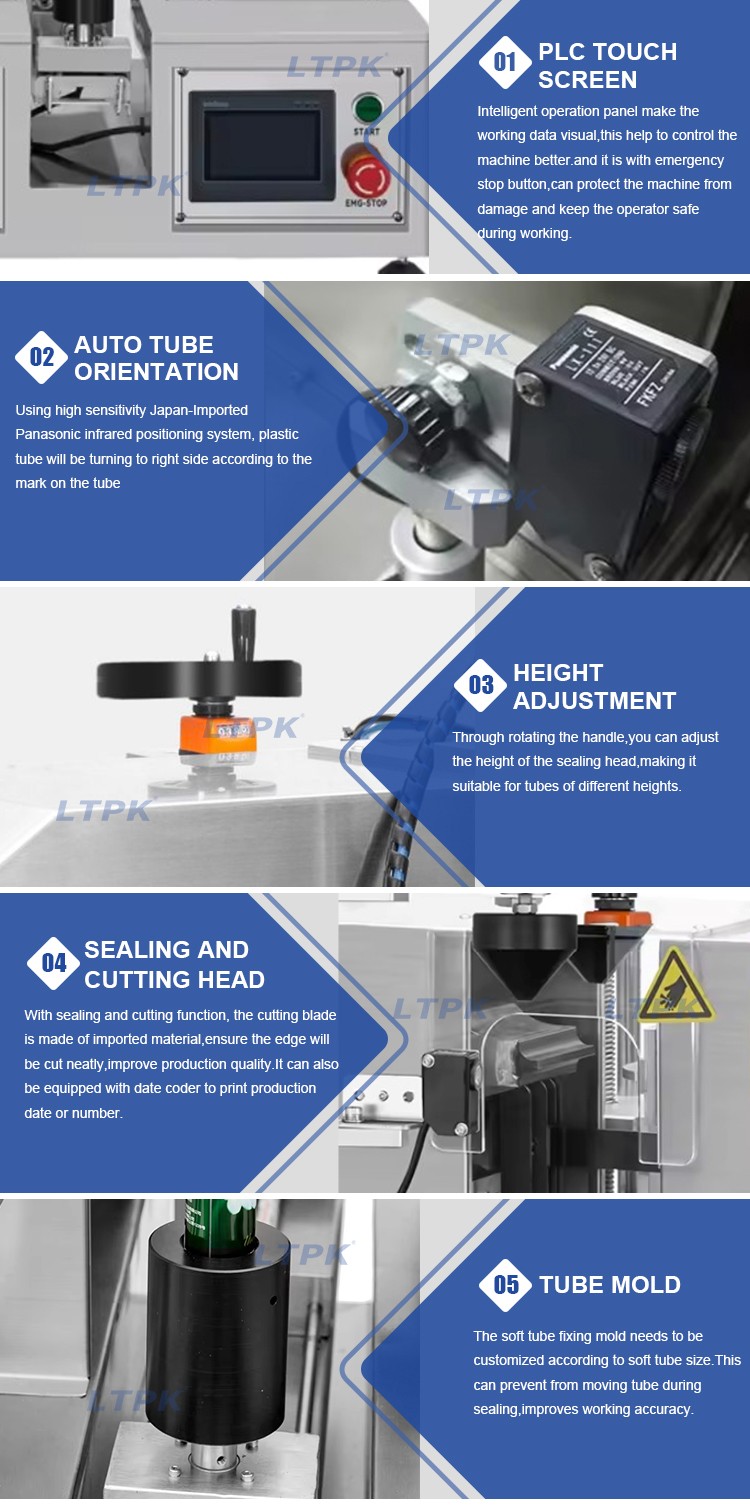

2. PLC touch screen control, easy to operate.
3. The ultrasonic mold is oxidized by electroplating, which is more durable and has a more beautiful appearance.
4. The machine adopts American line electric box and original transducer, which has stable and reliable performance and long service life.
Model | LT-007 |
Voltage | 220/110V |
Power | 2KW |
Frequency | 20kHZ |
Sealing speed | 10-12pcs/min |
Tube height | 50-220mm |
Tube diameter | 10-50mm |
Applicable tube material | Plastic composite tube, aluminum-plastic tube |
Air pressure | 0.5-0.6MPa |
Air consumption | 0.2m³/min |
Size | 850*600*730mm |
Weight | 85kg |
Application
Applicable to: plastic hoses for various materials such as toothpaste, cosmetics, oil, food, industrial supplies, etc.
