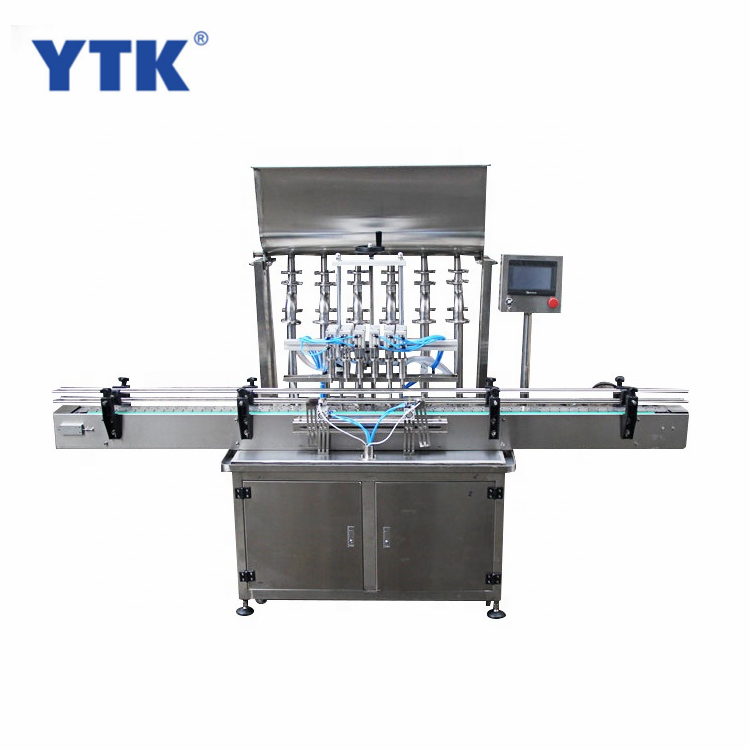

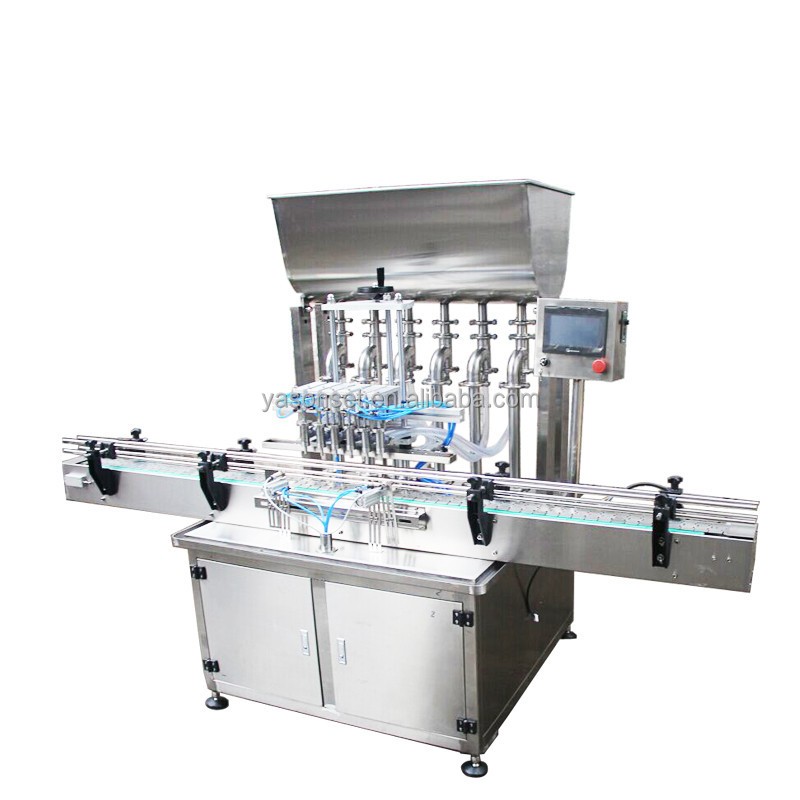

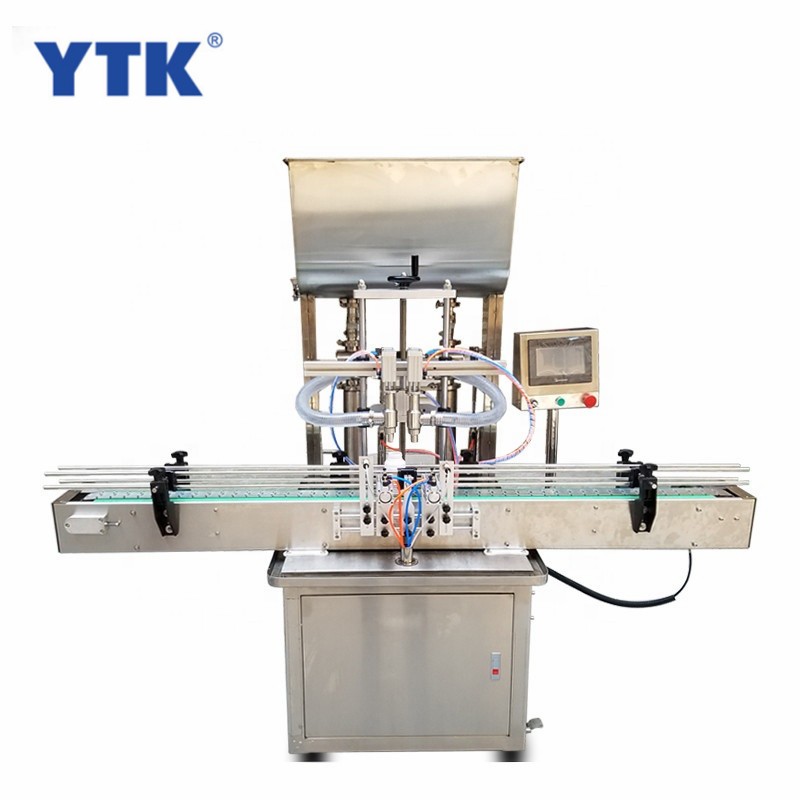

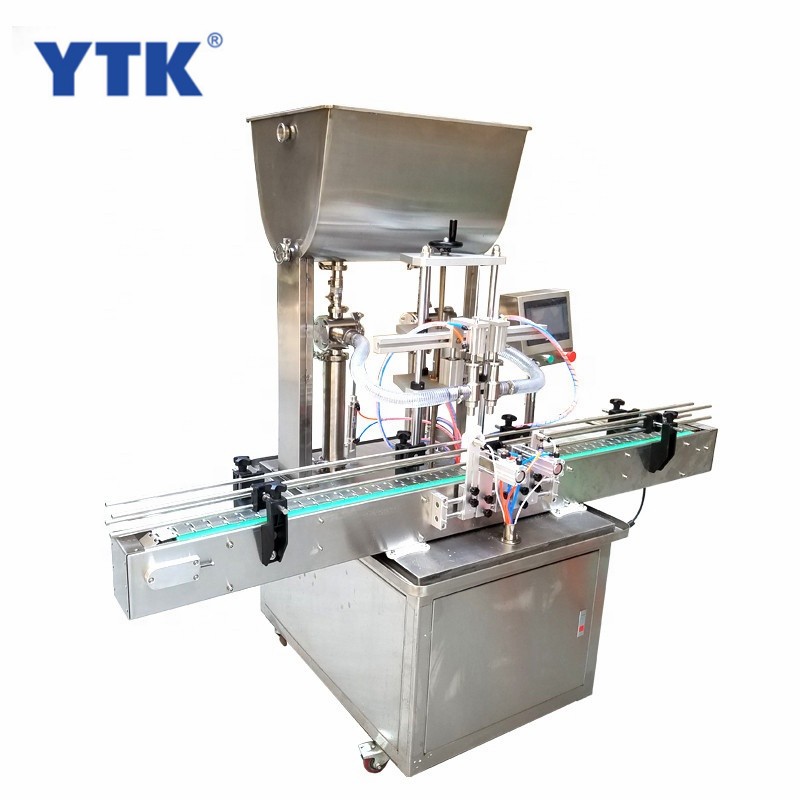

APF2/4/6/8 Assembly Line Automatic Paste Filling Machine

APF2/4/6/8 Assembly Line Automatic Paste Filling Machine

Model: ALF2/4/6/8
No. of filling nozzle: 2/4/6/8 or custom
Filling range: 5-100ml, 10-300ml, 50-500ml, 100-1000ml, 500-3000ml, 1000-5000ml
Filling speed: 5-10bottles/nozzle·min
Accuracy: ±1%
Air pressure: 0.4-0.6MPa

APF2/4/6/8 Assembly Line Automatic Paste Filling Machine

Description

This series of liquid & paste filling machine is suitable for filling different types of liquid & paste products in daily chemical, food, grease, medicine, pesticide and other industries. The piston injection filling and three way one-way valve device has the advantages of high filling accuracy, convenient installation and debugging, simple cleaning and cleaning, and no leakage.

Note: Filling heads can be customized, 2, 4, 6, 8, etc.
